Engine, Securing To Engine And Transmission Holder
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine and Gearbox Bracket: VAS6095A
- Engine/Transmission Holder - Universal Mounting: VAS6095/1
- Engine Bracket V8 TFSI: VAS6095/1-17A
Procedure
- Engine removed from the : VAS6131B . Refer to ENGINE, REMOVING FROM SCISSOR LIFT TABLE .
-- Remove the left and right bolts for the engine support bolt which were previously installed.
-- Free up the wiring harness.

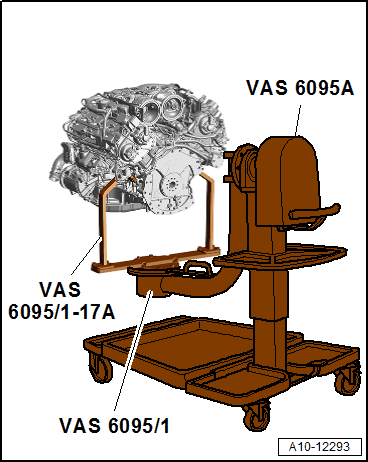

-- Secure the engine with : VAS6095/1 and the : VAS6095/1-17A to 40 Nm on the : VAS6095A at the same time pay attention to the manufacturer installation instructions.
