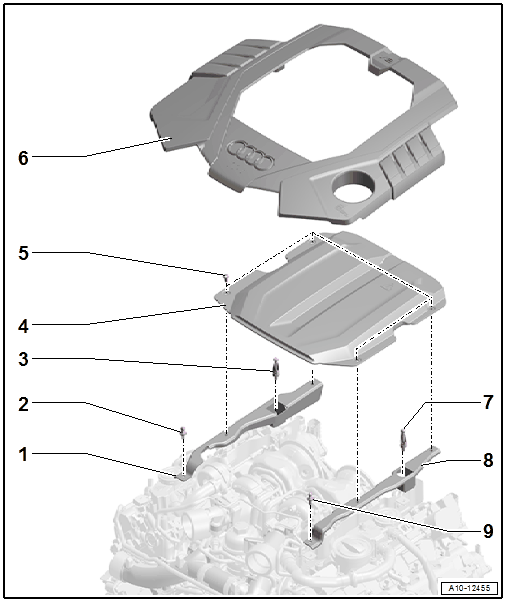

Overview - Engine Cover
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For the heat shield
- Ball Pin
- 9 Nm
- Ball Pin
- 9 Nm
- Heat Shield
- Bolt
- 9 Nm
- Engine Cover
- Removing and installing. Refer to ENGINE COVER, REMOVING AND INSTALLING .
- Ball Pin
- 9 Nm
- Bracket
- For the heat shield
- Ball Pin
- 9 Nm
