Overview - Headlamps, Repair Kit For A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

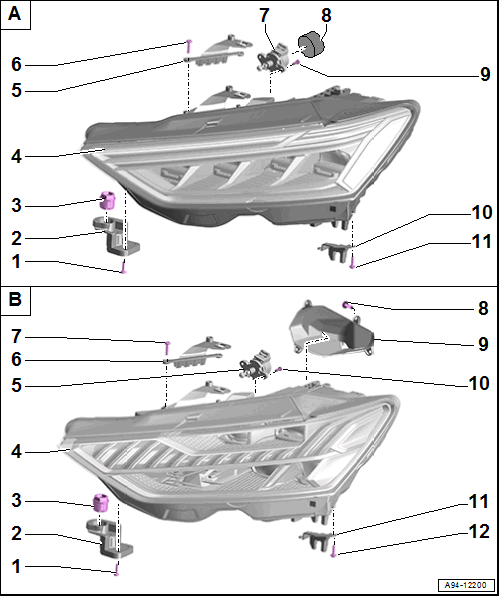

Fig 1: Exploded View Of Headlamps, Repair Kit For A7 Sportback, RS 7 Sportback, RS 6 Avant

Courtesy of AUDI OF AMERICA, LLC

A - LED Headlamp Repair Kit
1 - Screw
- 6 Nm
2 - Inner Bracket
- From the headlamp housing repair kit. Refer to the Parts Information.
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT .
3 - Adjusting Nut
- For the headlamp height adjustment
4 - Headlamp Housing
5 - Center Bracket
- From the headlamp housing repair kit. Refer to the Parts Information.
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT .
6 - Screw
- 6 Nm
7 - Headlamp Beam Adjustment Motor
- For North American Region only
- Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
- Removing and Installing. Refer to LEFT AND RIGHT HEADLIGHT RANGE CONTROL ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, LED HEADLAMPS, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT .
8 - Headlamp Beam Adjustment Motor Housing Cover
- For North American Region only
- The headlamp housing must be cut open to replace the adjustment motor
- A housing cover can be ordered to seal the assembly opening. Refer to the Parts Information.
9 - Screw
- 6 Nm
- For North American Region only
10 - Outer Bracket
- From the headlamp housing repair kit. Refer to the Parts Information.
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT .
11 - Screw
- 6 Nm
B - Matrix LED Headlamp and Laser High Beam Repair Kit
1 -
Screw
- 6 Nm
2 - Inner Bracket
- From the headlamp housing repair kit. Refer to the Parts Information.
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT .
3 - Adjusting Nut
- For the headlamp height adjustment
4 - Headlamp Housing
5 - Headlamp Beam Adjustment Motor
- For North American Region only
- Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
- Removing and Installing. Refer to LEFT AND RIGHT HEADLIGHT RANGE CONTROL ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, MATRIX LASTER HIGH BEAM HEADLAMPS, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT .
6 - Center Bracket
- From the headlamp housing repair kit. Refer to the Parts Information.
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT .
7 - Screw
- 6 Nm
8 - Screw
- 6 Nm
- For North American Region only
9 - Headlamp Beam Adjustment Motor Housing Cover
- For North American Region only
- The headlamp housing must be cut open to replace the adjustment motor
- A housing cover can be ordered to seal the assembly opening. Refer to the Parts Information.
10 - Screw
- 6 Nm
- For North American Region only
11 - Outer Bracket
- From the headlamp housing repair kit. Refer to the Parts Information.
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT .
12 - Screw
- 6 Nm
