Headlamp Housing Repair Kit, Installing, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
TIP:
Headlamp mounting tabs that have broken off can be replaced by installing the repair set. Completely replacing the headlamp is therefore not necessary.
There are different repair kits for the left and right headlamps. Refer to Parts Information.
Procedure
-- Remove the headlamp with the broken tabs. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING .
-- Remove the rest of the broken tab on the headlamp housing.

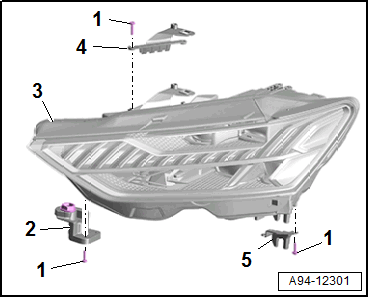

-- Position the brackets -2, 4 and 5- from the repair kit on the headlamp housing -3- and fasten with the bolts -1-.
-- Adjust the headlamp. Refer to HEADLAMP, ADJUSTING .
Tightening Specifications
- Refer to OVERVIEW - HEADLAMPS
