Headlamp Housing, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch off.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the headlamp cover. Refer to OVERVIEW - PLENUM CHAMBER COVER .
-- Right: free up the washer fluid hose -1- for the headlamp washer system -arrows-.
-- Disconnect the washer fluid hose at the washer nozzle.

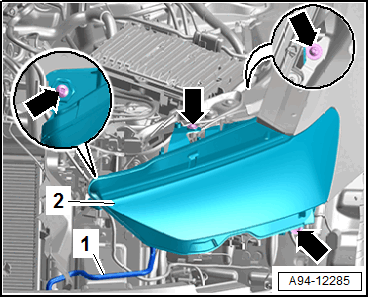

-- Remove the screws -arrows-.
-- Free up the breather hose -1-.
-- Pull the headlamp housing -2- forward slightly and disconnect the connector.
-- Remove the headlamp housing.
