Overview - Plenum Chamber Cover

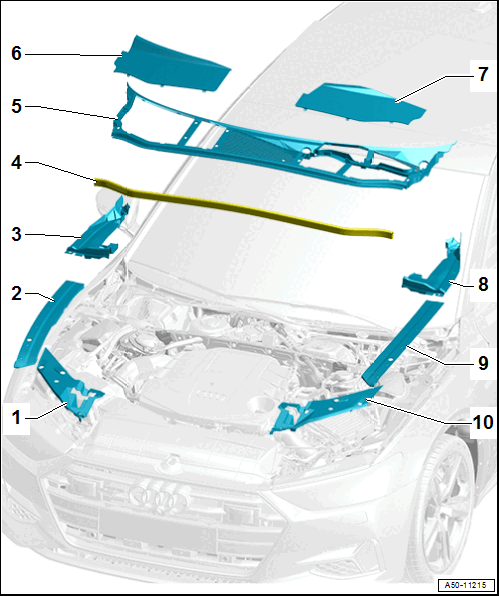

Fig 1: Overview - Plenum Chamber Cover
GWWA50-11215Courtesy of AUDI OF AMERICA, LLC
  1. Headlamp Cover
    • Right
  2. Front Cover for Fender
  3. Rear Cover for Fender
  4. Seal
  5. Plenum Chamber Cover
  6. Cover
    • Right
  7. Cover
    • Left
  8. Rear Cover for Fender
  9. Front Cover for Fender
  10. Headlamp Cover
    • Left
