ATF LEVEL, CHECKING, 0D3 "quattro sport" AND 0BX "quattro sport"
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
Test requirement
- ATF temperature: 10 °C to 60 °C (50 °F to 140 °F)
- The rear final drive must be in the installed position.
- The vehicle must be level.
- Refer to COMPONENT LOCATION OVERVIEW - DRAIN AND CHECK PLUGS, 0D3 "quattro sport" AND 0BX "quattro sport"
Special tools and workshop equipment required
- Drip Tray

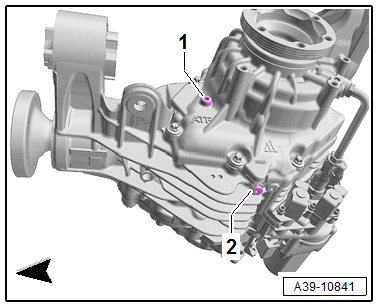

-- Remove the ATF check plug -1- to check the ATF level.
Tip:
- The ATF check plug -1- is located on the left side of the rear final drive. Identification >>ATF<< on the final drive housing.
- ATF plug overview. Refer to COMPONENT LOCATION OVERVIEW - DRAIN AND CHECK PLUGS, 0D3 "quattro sport" AND 0BX "quattro sport" .
- The ATF level is correct when the rear final drive is filled to the lower edge of the fill hole.
If the ATF is correct:
-- Install and tighten the new ATF check plug -1-. Tightening specification -item : ATF Check Plug.
If the ATF is not correct:
-- Fill the ATF. Refer to ATF, FILLING, 0D3 AND 0BX "quattro sport" .
