COMPONENT LOCATION OVERVIEW - DRAIN AND CHECK PLUGS, 0D3 "quattro sport" AND 0BX "quattro sport"
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

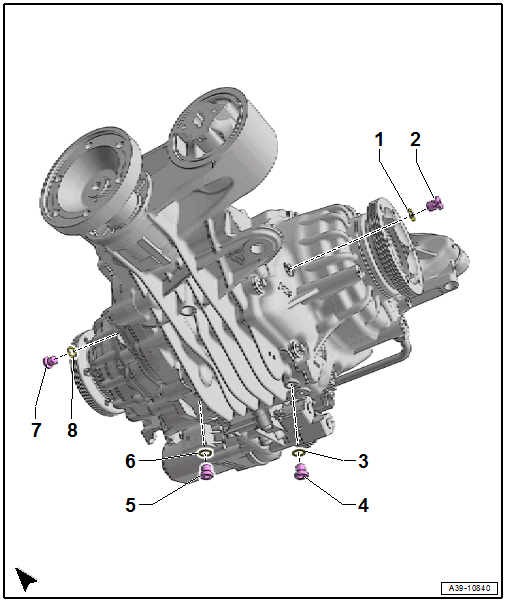

Drain and Check Plugs on Final Drive 0D3 "quattro sport"
- Seal
- Permanent component of the ATF check plug -item : ATF Check Plug
- ATF Check Plug
- 15 Nm
- Always replace.
- Seal
- Permanent component of the ATF drain plug -item : ATF Drain Plug
- ATF Drain Plug
- 15 Nm
- Always replace.
- Gear Oil Drain Plug
- 15 Nm
- Always replace.
- Seal
- Permanent component of the gear oil drain plug -item : Gear Oil Drain Plug
- Gear Oil Check Plug
- 15 Nm
- Always replace.
- Seal
- Permanent component of the gear oil check plug -item : Gear Oil Check Plug
ATF Plugs on Final Drive 0BX quattro sport
1- ATF check plug
- Identification >>ATF<< on the final drive housing -arrow-
- Tightening specification: 15 Nm
- Always replace.
2 - ATF drain plug
- Tightening specification: 15 Nm
- Always replace.
Gear Oil Plugs on Final Drive 0BX quattro sport
1- Check plug for gear oil
- Tightening specification: 15 Nm
- Always replace.
2- Gear oil drain plug
- Tightening specification: 15 Nm
- Always replace.
