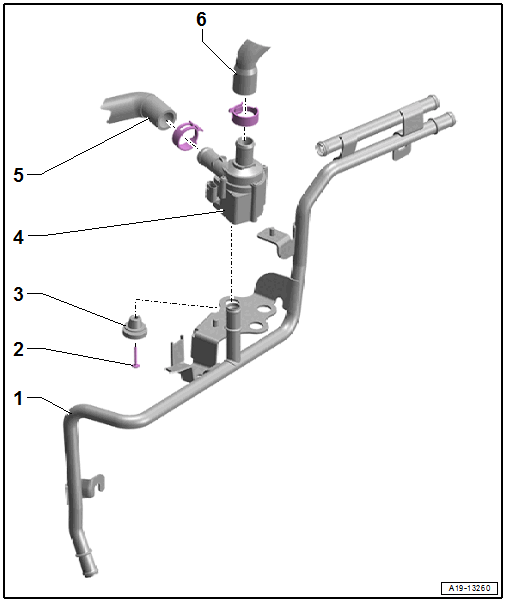

Overview - Electric Coolant Pump
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Pipe on the Right Longitudinal Member
- Overview. Refer to Overview - Coolant pipes on the subframe, transmission and body .
- Bolt
- 1.5 Nm
- Rubber Bushing
- Coolant Recirculation Pump -V50-
- Removing and installing. Refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING .
- Coolant Hose
- Coolant Hose

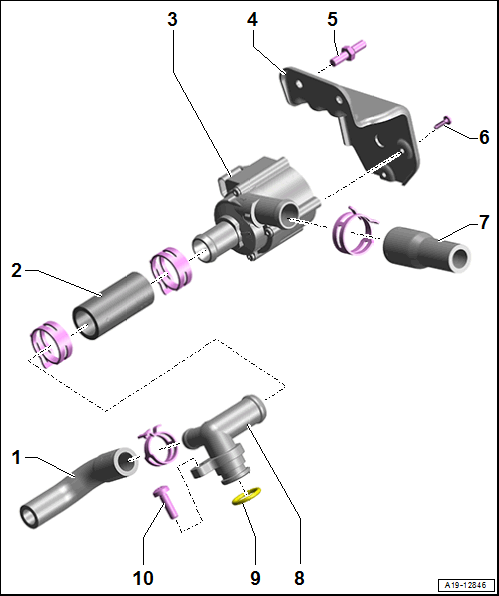

Overview - After-Run Coolant Pump -V51-. Refer to Overview - .
- Not Installed
- Coolant Hose
- After-Run Coolant Pump -V51-
- Removing and installing. Refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING .
- Bracket
- For the After-Run Coolant Pump -V51-
- Bolt
- 9 Nm
- Bolt
- 1.5 Nm
- Coolant Hose
- Connection
- There are different versions. Refer to the Parts Information.
- O-Ring
- Replace after removing.
- Bolt
- 9 Nm

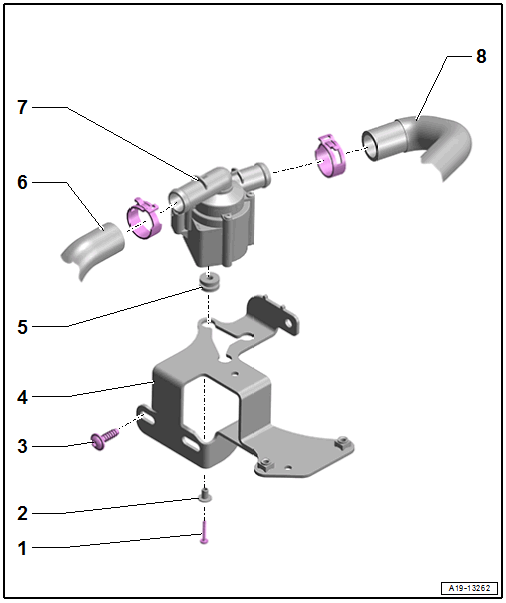

Overview - Transmission Fluid Cooling Pump -V478-. Refer to Overview - .
- Bolt
- 1.5 Nm
- Spacer Sleeve
- Bolt
- 5.5 Nm
- Thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- Bracket
- For the Transmission Fluid Cooling Pump -V478-
- Rubber Bushing
- Coolant Hose
- Transmission Fluid Cooling Pump -V478-
- Removing and installing. Refer to Transmission Fluid Cooling Pump -V478-, REMOVING AND INSTALLING .
- Coolant Hose
