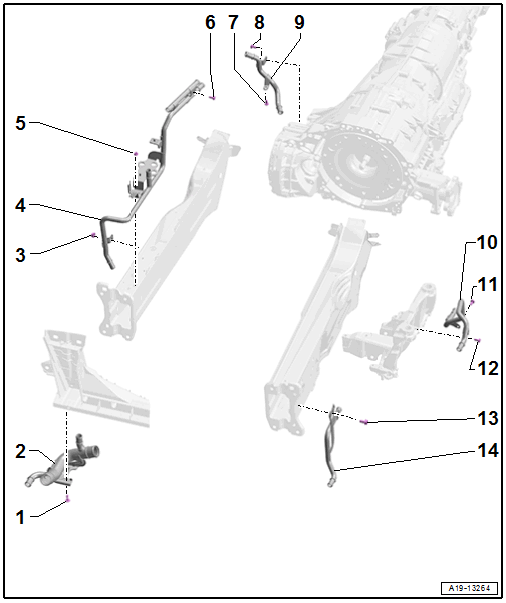

Overview - Coolant pipes on the subframe, transmission and body
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- 12 Nm
- Thread cutting
- Coolant Pipe to Lock Carrier
- Nut
- 23 Nm
- Coolant Pipe on the Right Longitudinal Member
- Removing and installing. Refer to LONGITUDINAL MEMBER COOLANT PIPE, RIGHT, REMOVING AND INSTALLING .
- Nut
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Right Coolant Pipe on the Transmission
- Removing and installing. Refer to RIGHT COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .
- Left Coolant Pipe on Subframe
- Removing and installing. Refer to LEFT COOLANT PIPE ON SUBFRAME, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
