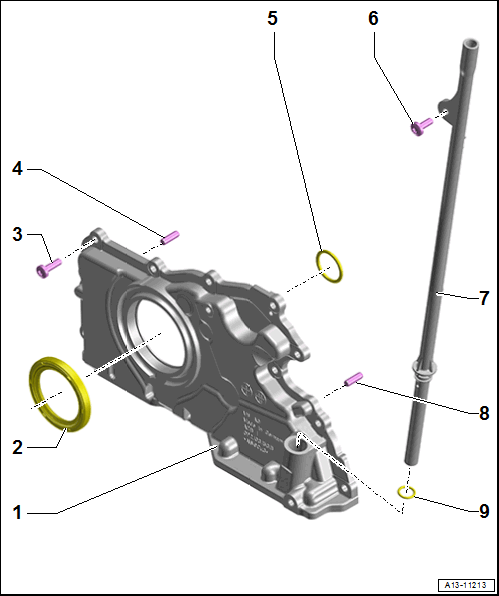

Overview - Belt Pulley Side Sealing Flange
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
- Sealing Flange, Belt Pulley Side
- Removing and Installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .
- Seal
- For the belt pulley side crankshaft
- Replacing. Refer to CRANKSHAFT SEAL, REPLACING, BELT PULLEY SIDE .
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Alignment Pin
- Is inserted in the belt pulley side sealing flange
- O-Ring
- Is inserted in the belt pulley side sealing flange
- Bolt
- 9 Nm
- Oil Dipstick Tube
- Alignment Pin
- Is inserted in the belt pulley side sealing flange
- O-Ring
- Replace after removing
Ribbed Belt Pulley Side Sealing Flange - Tightening Specifications and Sequence
-- Tighten the bolts -1 through 10- in steps as shown:
| Step | Tightening Specifications |
|---|---|
| 1. | Install all the way by hand |
| 2. | 9 Nm |
