Crankshaft Seal, Replacing, Belt Pulley Side

Special tools and workshop equipment required

• Puller - Crankshaft Seal: T40019
  Fig 1: Identifying Oil Seal Extractor T40019

  Courtesy of AUDI OF AMERICA, LLC
• Guide Thrust Piece: T40019/4  , not illustrated
• Assembly Tool: T40320
  Fig 2: Assembly Tool

  Courtesy of AUDI OF AMERICA, LLC
• Guide Sleeve : T40320/4  , not illustrated

Tool Preparation

Courtesy of AUDI OF AMERICA, LLC

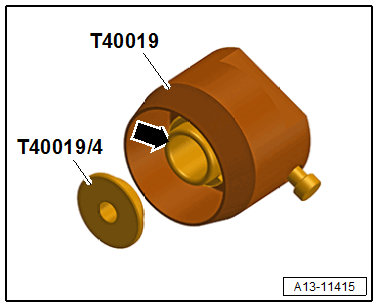

-- Insert the Thrust Piece: T40019/4  in the inner part -arrow- of the Puller - Crankshaft Seal: T40019  .

Procedure

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

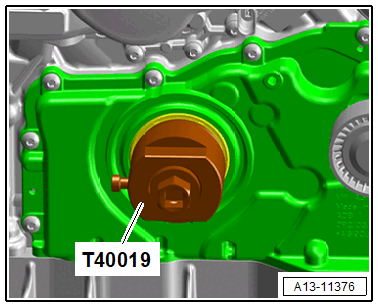

-- Position the inner part of the Puller - Crankshaft Seal: T40019  flush with outer part and secure it with the knurled bolt.

-- Lubricate the threaded head on the camshaft seal puller position it and install it as far as possible into the seal using force.

-- Loosen the knurled bolt and turn the inner part with the Thrust Piece: T40019/4  against the crankshaft, until the seal is removed.

-- Secure the seal puller in a vise at the flat spots and remove the seal using pliers.

-- Clean the contact and sealing surface.

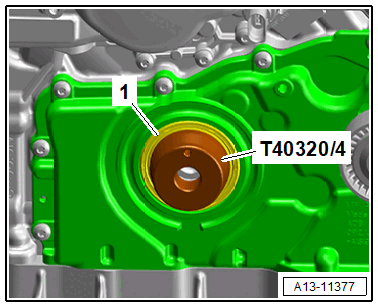

-- Mount the Guide: T40320/4  on the crankshaft and push the seal -1- into the belt pulley side sealing flange.

Courtesy of AUDI OF AMERICA, LLC

• The open side of seal faces the engine.
• Leave the Guide: T40320/4  on the crankshaft for pressing in.

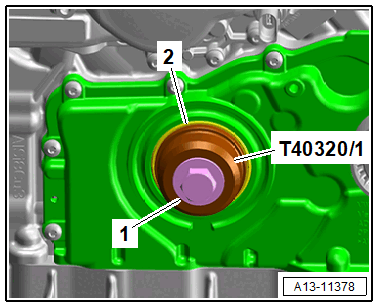

-- Position the Assembly Tool - Thrust Piece: T40320/1  with the bolt -1- for the vibration damper on the crankshaft.

Courtesy of AUDI OF AMERICA, LLC

-- Press the seal -2- in all the way.

Install in reverse order of removal. Note the following:

-- Install the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
