Overview - SUBFRAME

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

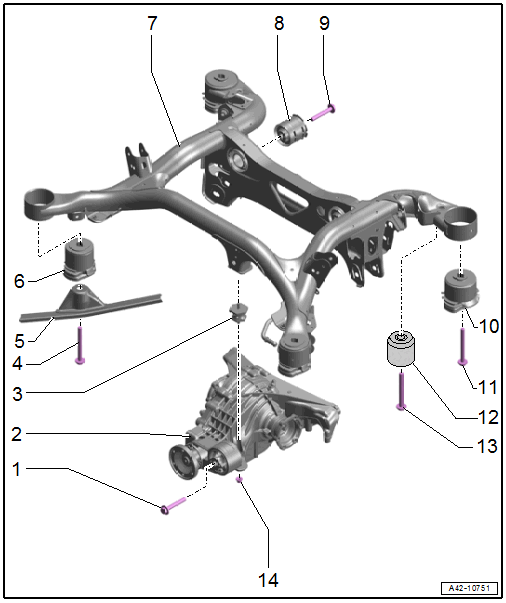

Fig 1: Exploded View Of Subframe

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening specification. Refer to the appropriate service information .
Rear Final Drive
Additional Bearing
- For the rear final drive
- Removing and installing. Refer to the appropriate service information .
Bolt
- Replace after removing
- 130 Nm + 180°
Diagonal Brace
- Overview. Refer to Underbody Trim Panel ; Overview - Diagonal Braces.
Front Hydraulic Bonded Rubber Bushing
- For the subframe
- Removing and Installing. Refer to SUBFRAME FRONT HYDRAULIC BONDED RUBBER BUSHING, REPLACING .
- Installation position. Refer to Fig 3.
Subframe
- Removing and Installing. Refer to SUBFRAME, REMOVING AND INSTALLING .
Rear Bonded Rubber Bushing
- For the rear final drive
- Removing and Installing. Refer to REAR BONDED RUBBER BUSHING FOR REAR FINAL DRIVE, REMOVING AND INSTALLING .
- Installation position. Refer to Fig 4.
Bolt
- Tightening specification. Refer to the appropriate service information .
Rear Bonded Rubber Bushing
- For the subframe
- Removing and Installing. Refer to SUBFRAME REAR BONDED RUBBER BUSHING, REPLACING .
Bolt
- Replace after removing
- 130 Nm + 180°
Balance Weight
- Installation position. Refer to Fig 2.
Bolt
- Replace after removing
- 50 Nm + 180°
Nut
- Tightening specification. Refer to the appropriate service information .

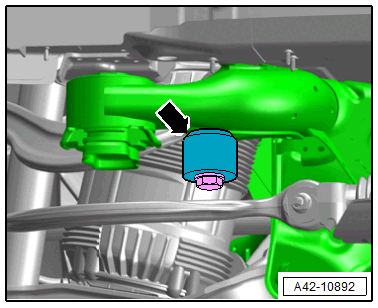

Vibration damper installation position

Fig 2: Vibration Damper Installation Position

Courtesy of AUDI OF AMERICA, LLC

The beveled surface -arrow- must point upward.

Subframe hydraulic front bonded rubber bushing installation position

Fig 3: Bonded Rubber Bushing Installed Position

Courtesy of AUDI OF AMERICA, LLC

The groves -arrows- are perpendicular to the direction of travel.

Rear bonded rubber bushings installation position for the rear final drive.

Fig 4: Rear Bonded Rubber Bushings Installation Position for the Rear Final Drive

Courtesy of AUDI OF AMERICA, LLC

The grooves -arrows- on the bonded rubber bushings -1- are at a right angle.

Steering Adapter/Subframe Threaded Connection

Fig 5: Steering Adapter/Subframe Threaded Connection

Courtesy of AUDI OF AMERICA, LLC

Only on vehicles without rear axle steering.

CAUTION:

There is a risk of accident due to a loosened steering adapter/subframe threaded connection.

- Do not loosen the steering adapter/ subframe threaded connection.

Replace the bolts after removing them.

-- Bring the steering adapter -1- into the installation position and install the bolts by hand all the way.

-- Align the steering adapter with the Locking Pin :T40393 to the subframe and tighten the bolts, refer to Bolt .
