Overview - Cylinder Block, Transmission Side: Notes
WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

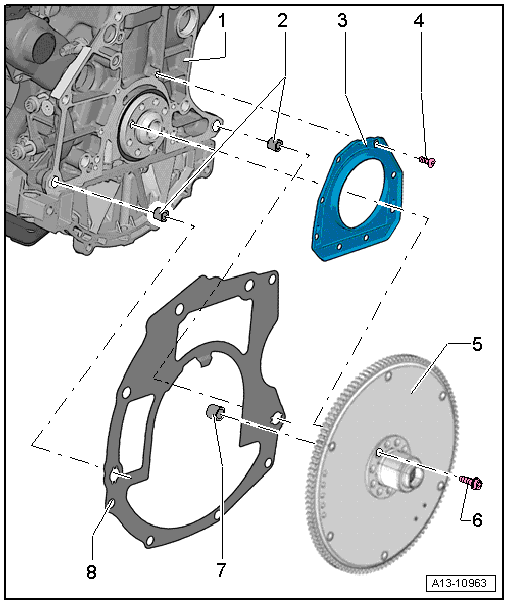

- Cylinder Block
- Alignment Sleeves
- Transmission Side Sealing Flange
- Replace after removing
- With gasket
- Removing and Installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
- Before installing, remove oil residue from crankshaft journal with a clean cloth
- The guide sleeve may only be removed after the sealing flange has been slid onto the crankshaft journal.
- Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Drive Plate
- Removing and Installing. Refer to DRIVE PLATE, REMOVING AND INSTALLING .
- Versions with a manual transmission must have a needle bearing inside the drive plate; if necessary install the needle bearing. Refer to NEEDLE BEARING IN DRIVE PLATE, REPLACING .
- For the version with a dual-clutch transmission, then do not install a needle bearing inside the crankshaft. Remove the needle bearing if necessary. Refer to NEEDLE BEARING IN DRIVE PLATE, REPLACING .
- Bolt
- 60 Nm +90°
- Replace after removing
- Needle Bearing
- For version with manual transmission
- Replacing. Refer to NEEDLE BEARING IN DRIVE PLATE, REPLACING .
- Intermediate Plate
- Be careful not to damage or bend when installing
- Removing and Installing. Refer to Fig 3.
Transmission Side Sealing Flange - Tightening Specifications and Sequence

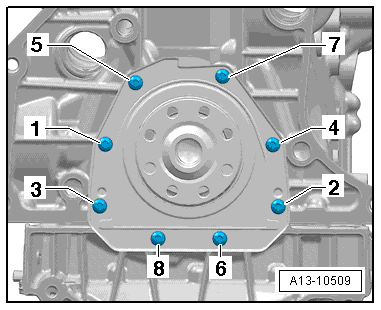

-- Tighten the bolts -1 to 8- in stages in the sequence shown.
| Step | Tightening Specification |
|---|---|
| 1. | Install all the way by hand |
| 2. | 9 Nm |
Intermediate Plate, Removing and Installing
