Engine, Supporting In Installation Position

WARNING: This page is about a different car, the 2021 Audi A6 Quattro, 2020 Audi A6 Quattro, and 2019 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Set: 10-222B

Procedure

CAUTION:

Risk of injury due to the engine weight shifting.

Parts of the body could be crushed.

- Only support the engine when the transmission and tunnel crossmember are removed.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Audi A6:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right covers for the fender. Refer to OVERVIEW - FENDER .

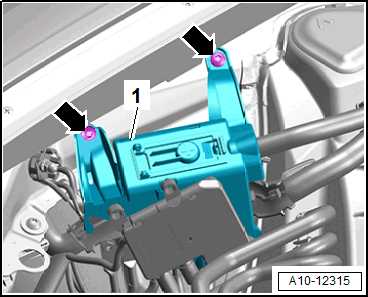

-- Remove the bolts -arrows- and push the E-box slightly to the side.

Continuation for All:

Courtesy of AUDI OF AMERICA, LLC

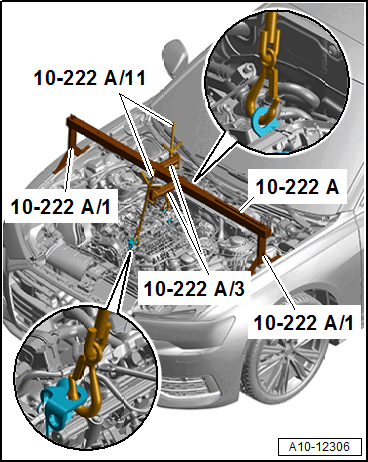

-- Position the : 10-222A as shown on the left and right fender bolting edges.

-- Engage the : 10-222A/11 on the engine lifting eye.

-- Pretension the engine with the spindle, do not lift.

Assembling

Assemble in the reverse order of removal. Note the following:

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
