Radiator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi A6 Quattro, 2020 Audi A6 Quattro, and 2019 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the right front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

CAUTION:

There is a risk of injury if the radiator fan turns on by itself.

- When performing procedures near the radiator maintain a distance to the radiator.

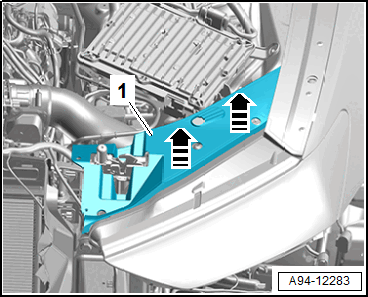

-- Remove the impact member. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .

-- A6: Remove the spring element for the right bumper cover bracket. Refer to OVERVIEW - LOCK CARRIER .

-- A7 Sportback: Loosen the spring element for the right bumper cover bracket and push it to the side slightly. Refer to OVERVIEW - LOCK CARRIER .

-- Place the container of the :VAS5014 or the :VAS6208 underneath.

Courtesy of AUDI OF AMERICA, LLC

-- Pry up the clamp -2- and remove the coolant hose from the lower right of the radiator.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of injury if the radiator fan turns on by itself.

- When performing procedures near the radiator maintain a distance to the radiator.

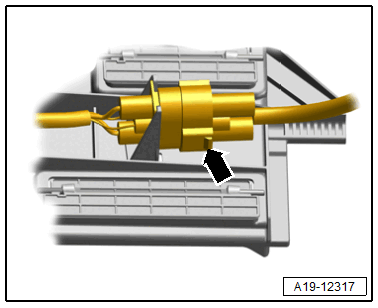

-- Disconnect the radiator fan connector -arrow-.

-- Release the catches -arrow- and remove the air ducts -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the air duct -2-.

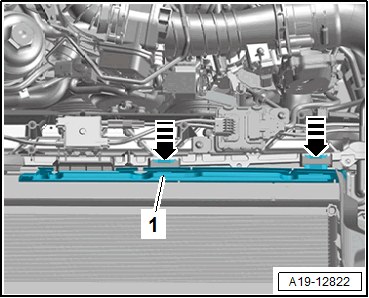

-- Remove the left and right headlamp cover -1- upward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air duct -1-.

Courtesy of AUDI OF AMERICA, LLC

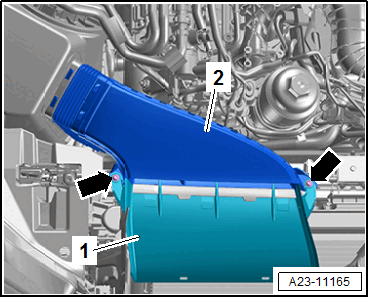

-- Release the retainers -arrows- and remove the upper air duct -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the charge air cooler. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .

-- Disconnect the connector -2- for the High Pressure Sensor -G65-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the refrigerant lines and hoses by removing and pivoting the condenser.

- Do not stretch, bend or kink the refrigerant lines and hoses.

CAUTION:

Risk of damaging the retainers due to improper handling.

- Carefully release the retainers.

-- Release the left and right catches -arrows- disengage the condenser -1- from the radiator and tie up to the side.

-- Lift the clamps -1 and 2-, remove and free up the coolant connection from the radiator.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolt -2- and push the radiator bracket with the radiator toward the front in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the left and right catches in direction of -arrows- and remove the retaining pin -1- for the radiator upward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the radiator.

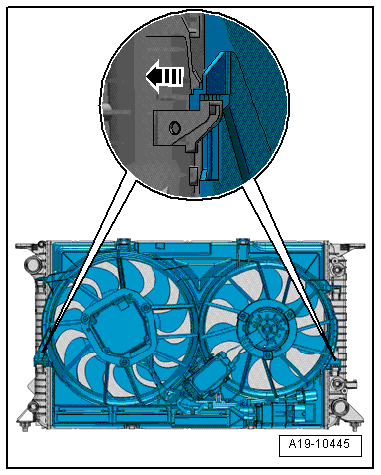

-- Press the fan shroud left and right locking tabs at the same time in direction of -arrow- and remove the fan shroud upward from the radiator.

Fig 1: Fan Shroud
