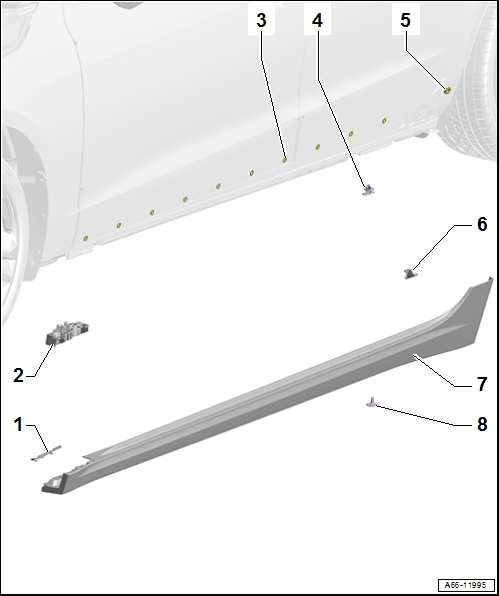

Overview - Side Sill Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Trim
- For the side sill trim panel
Front Bracket
- For the side sill trim panel
Seal
- Quantity: 10
Bracket
- For the side sill trim panel
- Replace after removing.
- Quantity: 10
- Removing and Installing. Refer to Installing => .
Seal
Mount
- There are different versions.
  - Front, quantity: 3
  - Rear, quantity: 4
Side Sill Trim Panel
- Replace after removing.
- Removing and Installing. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING .
Quick Release
- Quantity: 7
