Side Sill Trim Panel, Removing And Installing: Installing

Install in reverse order of removal and note the following:

-- Check the chafe protection -1- for damage.

Courtesy of AUDI OF AMERICA, LLC

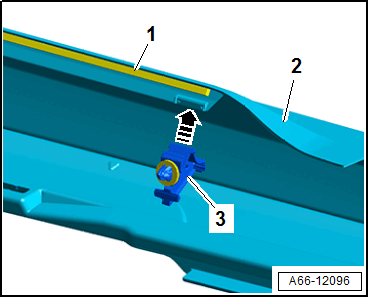

-- Insert the rear bracket -3- in the side sill trim panel cut-out -2-.

• The vehicle and the trim panel must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution :D 009 401 04  and let dry.

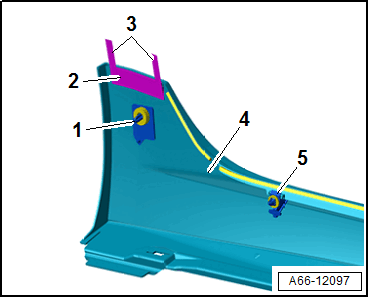

-- Fold back the end of the protective film, or attach a pulling aid -3- to the protective film.

Courtesy of AUDI OF AMERICA, LLC

-- Position the side sill trim panel -4- while placing the centering pin -1- on the recess.

-- Remove the protective film at the pulling aids from the adhesive tape -2-.

-- Press on the side sill trim panel until the bracket -5- engages audibly.

-- Press on the adhesion area using the :3356  .

• Vehicle resting time is at least 30 minutes at room temperature.
