Engine And Automatic Transmission, Separating

WARNING: This page is about a different car, the 2024 Audi Q3 and 2023 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine/Gearbox Support Shackle (2 pc.):10-222B/12

Fig 1: Engine/Gearbox Support Shackle (10-222A/12)
Courtesy of AUDI
Shop Crane:VAS 6100

Fig 2: Identifying Shop Crane
Courtesy of AUDI
Insert Tool - 18mm:T10179

Fig 3: Insert Tool - 18mm
Courtesy of AUDI
Wrench - 21mm:T40263

Fig 4: Identifying Wrench - 21mm
Courtesy of AUDI
Adapter:T40314

Fig 5: Adapter T40314
Courtesy of AUDI

Procedure

Engine/transmission assembly removed and mounted on Engine/Gearbox Jack - Engine Support:T10359A .

-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .

-- Remove the bevel box. Refer to BEVEL BOX, REMOVING .

-- Free up the coolant hose.

Courtesy of AUDI

-- Free up the wiring harness -1 and 2- from the air duct pipe.

-- Loosen the screw-type clamp -4-.

-- Remove the bolts -arrows- and remove the air duct pipe.

-- Disconnect the connector -1-.

Fig 6: Secondary Air Injection Sensor 1 -G609- / Secondary Air Injection Solenoid Valve -N112- component location

Courtesy of AUDI

-- Press the release buttons on both sides and remove the secondary air injection hose -2-.

Fig 7: Using T40263 & T40314

Courtesy of AUDI

CAUTION:

Risk of damaging the engine by the timing mechanism skipping.

- Only let the engine turn in the direction of engine rotation.

-- Turn the crankshaft with the Wrench - 21mm: T40263 , Adapter:T40314 and the 24 mm socket -arrow- until the corresponding bolt is accessible.

-- Remove the six torque converter bolts -arrow- by turning the engine 60° further.

Fig 8: Torque Converter

Courtesy of AUDI

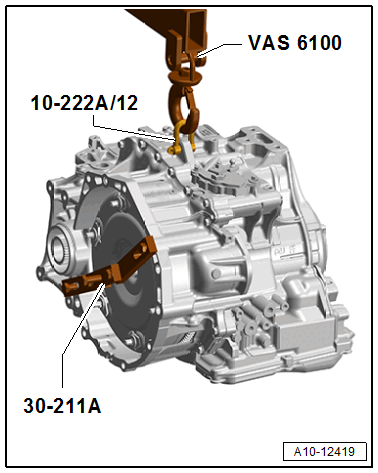

-- Secure the Engine/Gearbox Support Shackle:10-222A/12 at the top of the transmission housing.

Courtesy of AUDI

-- Engage the hook of the Shop Crane:VAS 6100 as shown in the shackle.

-- Raise the transmission with the shop crane and shackle.

-- Remove the bolts -1 and 2- and -5 to 8- for the transmission/engine connection.

Courtesy of AUDI

-- Remove the transmission from the engine, while doing so push the torque converter -1- with for example a screwdriver -2- against the transmission -direction of the arrow-.

Courtesy of AUDI

-- Secure the torque converter from falling out. Refer to OVERVIEW - TORQUE CONVERTER .
