Overview - Torque Converter

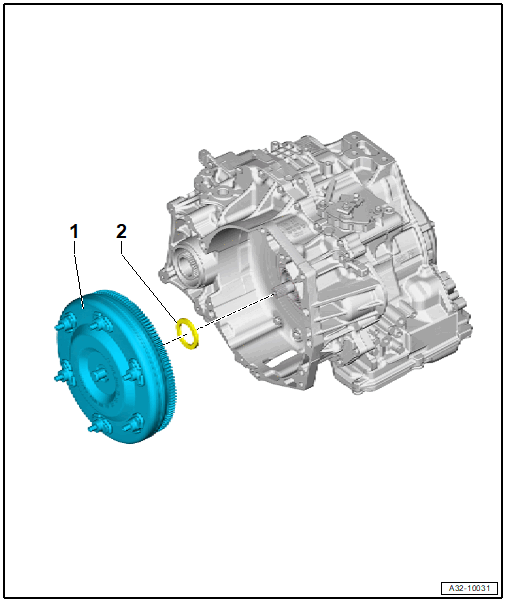

Fig 1: Exploded View Of Torque Converter

Courtesy of AUDI

1. Torque Converter
   • Code. Refer to the appropriate Parts Information
   • Identification. Refer to TORQUE CONVERTER IDENTIFICATION .
   • Secure the torque converter from falling when the transmission is removed or during transport. Refer to Fig 3.
   • Installing. Refer to TORQUE CONVERTER, REMOVING AND INSTALLING .
2. Seal
   • For the torque converter
   • Replacing. Refer to TORQUE CONVERTER SEAL, REMOVING AND INSTALLING .

Torque Converter - Tightening Specification

Fig 2: Torque Converter

Courtesy of AUDI

-- Tighten the nuts -arrow- for the torque converter -1- to 57 Nm.

Torque Converter, Securing from Falling Out

Fig 3: Securing Torque Converter

Courtesy of AUDI

-- Secure the torque converter from falling using the :30-211A  as shown (example).
