Engine Mount, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi Q3 and 2023 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the connector -1-.
-- Free up the clip -2- with the hose for the EVAP system and fuel hose.
-- Release the retainers with a screwdriver -arrow- and move the coolant expansion tank to the side.

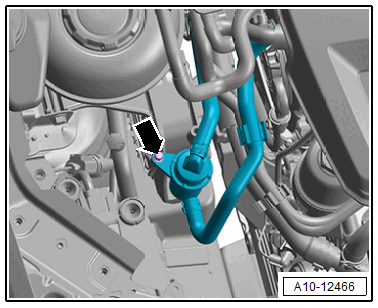

-- If equipped, remove the bolt -arrow- and remove the EVAP system hose.
-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .
-- Remove the bolts -arrows- and engine mount -1-.
