Engine, Supporting In Installation Position

WARNING: This page is about a different car, the 2024 Audi Q3 and 2023 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Bridge:10-222 A

Fig 1: Engine Support Bridge 10-222A
Courtesy of AUDI
Shakle:VAS 691 009A , not illustrated

Procedure

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Release the retainer -arrow- and remove the engine cover mount -1-.

Fig 2: Identifying Engine Cover Mount

Courtesy of AUDI

Vehicles with Secondary Air System:

-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

Continuation for All Vehicles:

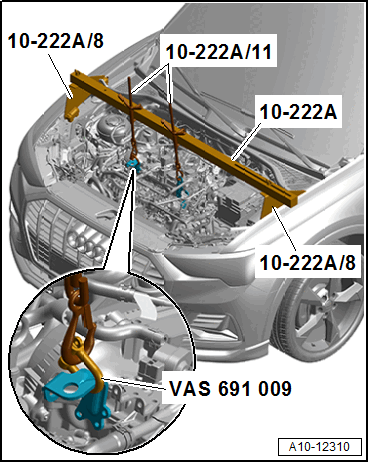

Courtesy of AUDI

-- Position the Engine Support Set:10-222B on the left and right fender bolting edges as shown.

-- Engage the Engine Support Bridge - Spindle Engine Support Bridge - Spindle:10-222A/11 to the engine lifting eyes, or the Shackle (Equivalent to VAS691009A):VAS 691 009A .

-- Slightly pretension the engine/transmission assembly with the spindle, do not lift.

Assembling

Assemble in the reverse order of removal. Note the following:

-- If removed, install the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
