Inner Sunroof Frame Seal, Removing and Installing

• The following components must be replaced after removal. Refer to OVERVIEW - SLIDING SUNROOF, Q3 SPORTBACK .

Special tools and workshop equipment required

• Wedge Set: T10383
  Fig 1: Identifying Wedge Set

  Courtesy of AUDI OF AMERICA, LLC

Removing

-- Remove the glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING, Q3 SPORTBACK .

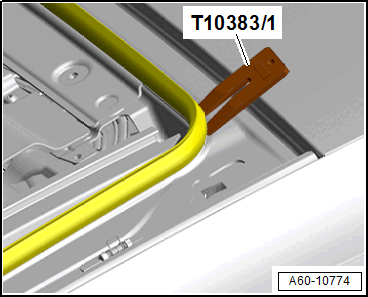

-- Loosen the inner sunroof seal using the Wedge Set : T10383/1  .

Courtesy of AUDI OF AMERICA, LLC

Installing

Install in reverse order of removal.
