Overview - Sunroof Shade, Q3 SPORTBACK

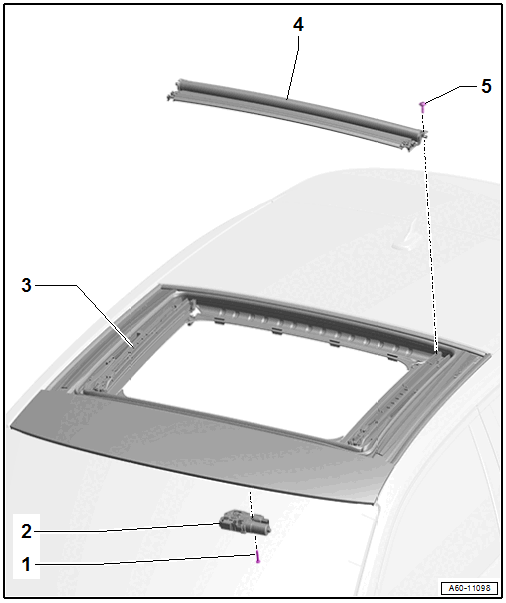

Fig 1: Exploded View Of Sunroof Shade, Q3 Sportback

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- Replace after removing
- 4 Nm
Sunroof Shade Motor -V260-
- Removing and Installing. Refer to Sunroof Shade Motor -V260-, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
Sunroof Frame
Sunroof Shade
- Removing and Installing. Refer to SUNROOF SHADES, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
Bolt
- Quantity: 2
- thread cutting
- Position and install by hand
- 2.5 Nm
