Overview - Rear Seat Backrest, A3

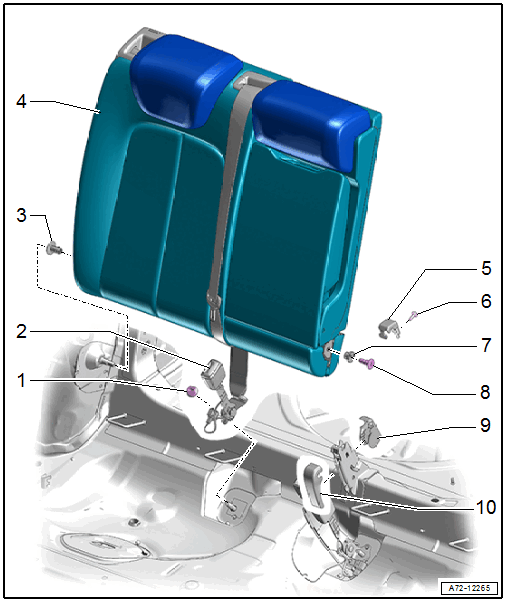

Fig 1: Exploded View Of Rear Seat Backrest, A3

Courtesy of AUDI OF AMERICA, LLC

Nut
- Tightening specification. Refer to OVERVIEW - CENTER REAR THREE-POINT SEAT BELT .
Center Belt End Fitting/Right Seat Belt Latch
Outer Bearing Sleeve
- Place in the backrest frame and push until stop.
- Removing and Installing. Refer to OUTER BEARING SLEEVE, REMOVING AND INSTALLING .
Right Backrest
- Equipped on some models: backrest with a pass-through
- Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
Securing Bracket
- For the center bracket
- Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
Bolt
- 9 Nm
Inner Bearing Sleeve
Inner Bearing Journal
- 15 Nm
Rear Cover
- For the center bracket
Front Cover
- For the center bracket
