Overview - Center Rear Three-Point Seat Belt

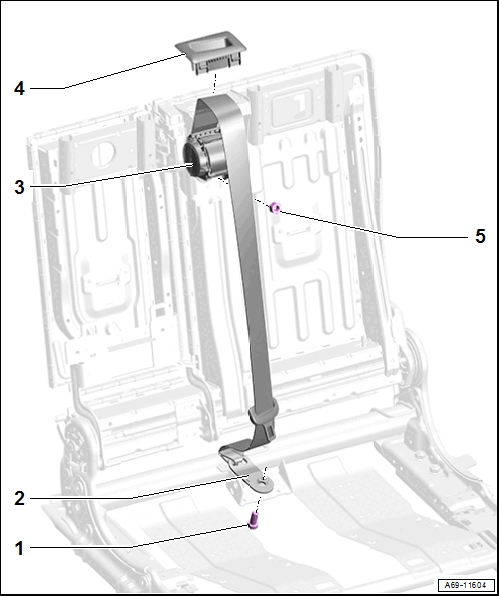

Fig 1: Exploded View Of Rear Center Three-Point Seat Belt

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 40 Nm
2. Belt End Fitting
   • Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING
3. Automatic Belt Retractor
   • In the rear seat backrest
   • Refer to CENTER REAR THREE POINT SEAT BELT IN FOLDING BACKREST, REMOVING AND INSTALLING
4. Seat Belt Guide
   • Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING
5. Nut
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 40 Nm
