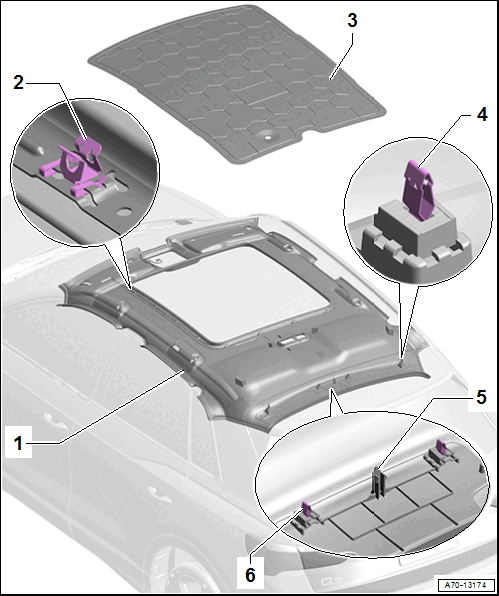

Overview - Headliner

Courtesy of AUDI OF AMERICA, LLC

Headliner
- Refer to HEADLINER, LOWERING
- Refer to HEADLINER, REMOVING AND INSTALLING
Clip
- For vehicles with sliding sunroof
- Quantity: 16
- Insert in the headliner
- Replace damaged or deformed clips
Roof Reinforcement
- Refer to ROOF REINFORCEMENT, REMOVING AND INSTALLING
Outer Clamp with Hooks
- Quantity: 2
- Replace after removing
- Insert in the headliner
Centering Drift with Catches
Center Clamp
- Quantity: 2
- Insert in the headliner
- Remove any remaining clips in the body mounting points using the Omega Clip Tool: T40280 . To install, insert into the headliner.
- Replace damaged or deformed clips
