Fan Shroud, Removing And Installing: Removing
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Remove the bolt -arrow- on the left and right.
-- Unclip and remove the lower section -1- of the air duct.
-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

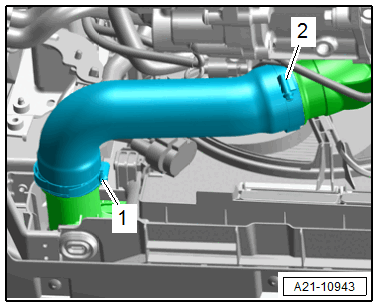

-- Loosen the hose clamp -1-, remove the air duct hose from the charge air cooler.
There is a risk of hand injury if the radiator fan turns on by itself.
- Do not reach into the radiator fan when disconnecting the connector.

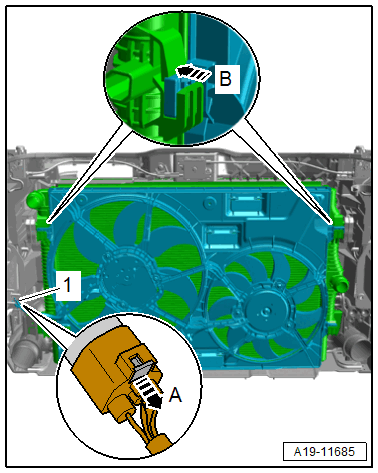

-- Disconnect the connector -1- for the radiator fan, to do this push the clip in the direction of -arrow A- and push the retainer downward.
-- Push the left and right locking latches for the fan shroud at the same time in direction of -arrow B- and remove the fan shroud upward from the radiator and remove from underneath.
