Overview - Noise Insulation

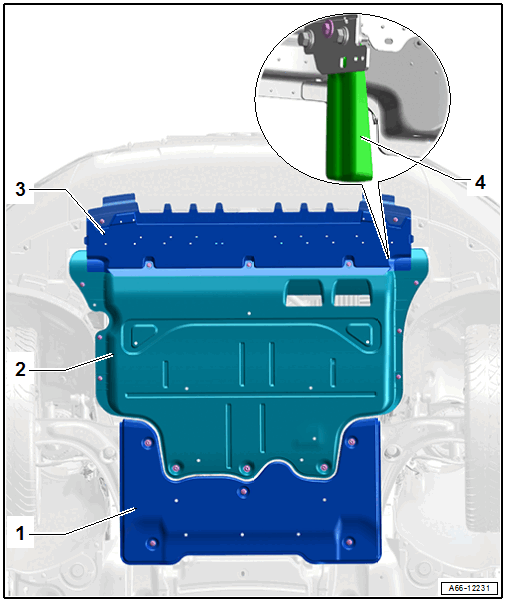

Fig 1: Noise Insulation
GWWA66-12231Courtesy of AUDI OF AMERICA, LLC
  1. Noise Insulation
    • Rear
    • Secured with expanding rivets
  2. Noise Insulation
    • Front
    • M8 Bolts: self-locking, replace after removal
    • Tightening Specifications
      • M5 Bolts: 2 Nm
      • M8 Bolts: 6 Nm
  3. Bumper Cover End Plate
    • Tightening Specifications
      • Bolts: 2 Nm
  4. Bracket
    • Impact Guard
    • Tightening Specifications
      • M8 Bolts: 20 Nm
