Overview - Wheel Bearing, Fwd Vehicles, Version 2

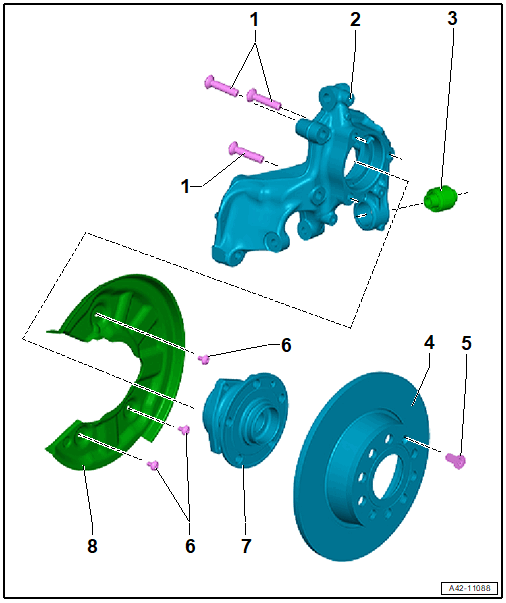

Fig 1: Exploded View Of Wheel Bearing, FWD Vehicles, Version 2

Courtesy of AUDI OF AMERICA, LLC

1. Bolts
   • Replace after removing
   • 90 Nm + 90°
2. Wheel Bearing Housing
   • Removing and Installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
3. Bonded Rubber Bushing
   • Replacing. Refer to WHEEL BEARING HOUSING BONDED RUBBER BUSHING, REPLACING .
4. Brake Rotor
   • Removing and installing. Refer to BRAKE ROTOR, REMOVING AND INSTALLING .
5. Bolt
   • Tightening specification. Refer to OVERVIEW - REAR BRAKES .
6. Bolts
   • Tightening specification. Refer to OVERVIEW - REAR BRAKES .
7. Wheel Bearing Unit
   • With sensor ring for ABS speed sensor
   • Check sensor ring. Refer to Sensors ; Sensor Ring for ABS Speed Sensor Checking
   • Cannot be serviced
   • Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING, FWD VEHICLES, VERSION 2 .
8. Brake Shield
   • Removing and installing. Refer to BRAKE SHIELD, REMOVING AND INSTALLING .
