Sunroof Shade, Removing And Installing, Q3: Removing

-- Move the sunroof shade all the way to the rear.

-- Remove the rear glass panel. Refer to REAR GLASS PANEL, REMOVING AND INSTALLING, Q3 .

-- Lower the rear headliner. Refer to OVERVIEW - HEADLINER .

-- Remove the nuts -4 and 8-.

Courtesy of AUDI OF AMERICA, LLC

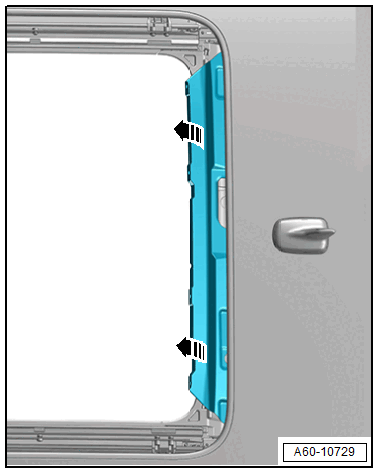

-- Lower the rear sunroof frames slightly to remove the reinforcement plate -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Move the sunroof shade all the way to the rear using the emergency release on the sunroof shade motor.

Courtesy of AUDI OF AMERICA, LLC

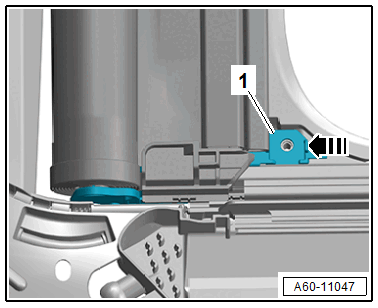

-- Remove the bolt -arrow- on the left and right.

-- Push the left and right guide -1- as far toward the rear -arrow- until they are disengaged from the sunroof frames.

Courtesy of AUDI OF AMERICA, LLC

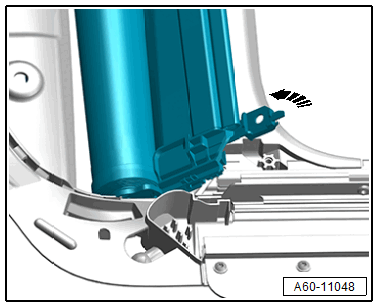

-- Pivot the guide together with the sunroof shade upward -arrow- and remove.

Courtesy of AUDI OF AMERICA, LLC
