Sunroof Shade, Removing And Installing, Q3: Installing

• The sunroof shade must be rolled up.

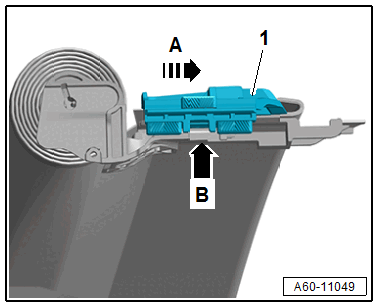

-- Push the left and right sunroof shade gliding piece -1- on the guide so far forward -arrow A- that the mount of the gliding piece is freed up -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

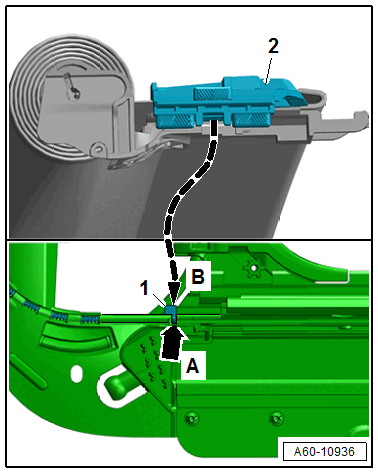

-- Check on the left and right, if the cable carrier -1- is located on the joint -arrow A- of the sunroof frame

Courtesy of AUDI OF AMERICA, LLC

-- Insert the sunroof shade on the sunroof frame.

• On the left and right the cut-out -arrow B- from the gliding piece -2- must be engaged in the carrier -1- on the sunroof frame.

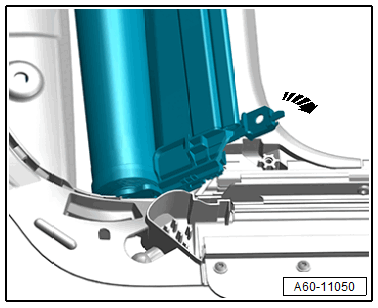

-- On the left and right pivot the guide together with the sunroof shade downward -arrow-.

Courtesy of AUDI OF AMERICA, LLC

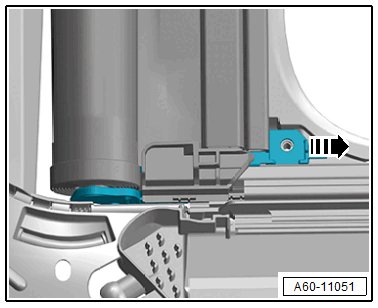

-- Pull the left and right of the guide forward -arrow- until the sunroof frame engages.

Courtesy of AUDI OF AMERICA, LLC

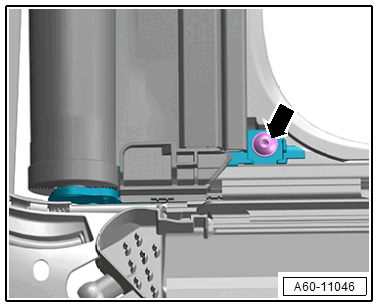

-- Tighten the left and right bolts -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Perform an adaptation. Refer to Sunroof Shade Motor -V260-, ADAPTING .
