Sliding And Tilting Mechanism Cable, Removing And Installing: Installing

-- Slide the sliding sunroof cable in the guide on the inner bracket.

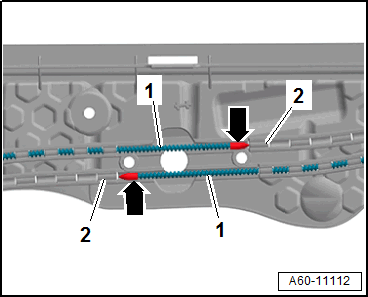

• Make sure when inserting that the respective end -arrow- of the cable -1- engages in the guide -2-.

  Courtesy of AUDI OF AMERICA, LLC

-- Slide the driver into the guide rail.

-- Install the sliding and tilting mechanism. Refer to SLIDING AND TILTING MECHANISM, REMOVING AND INSTALLING .

-- Pull the glass panel tilting rail on both sides all the way toward the rear.

Install in reverse order of removal. Note the following:

-- Perform an adaptation. Refer to Sunroof Shade Motor -V260-, ADAPTING .
