Glass Panel, Adjusting, Q3 SPORTBACK
- To achieve the best possible exterior optical characteristics, make sure that the adjustment on left and right sides is performed as evenly (symmetrically) as possible.

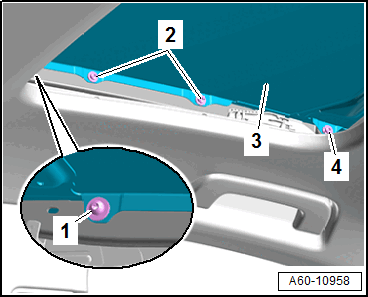

-- Open the glass panel wide enough so that the bolt -1- is easily accessible.
-- Loosen bolts -1, 2 and 4-.
-- Close the glass panel.
-- Check the glass panel adjustment using a depth gauge, for example.
-- Tighten the bolts -2-.
-- Open the glass panel wide enough so that the bolt -1- is easily accessible.
-- Tighten the bolts -1 and 4-.
Tightening Specifications
