Height, Adjusting Using Adjusting Buffer

• Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .

Special tools and workshop equipment required

• Adjustment Gauge:3371
  Fig 1: Gap Adjustment Gauge (3371)

  Courtesy of AUDI OF AMERICA, LLC

Procedure

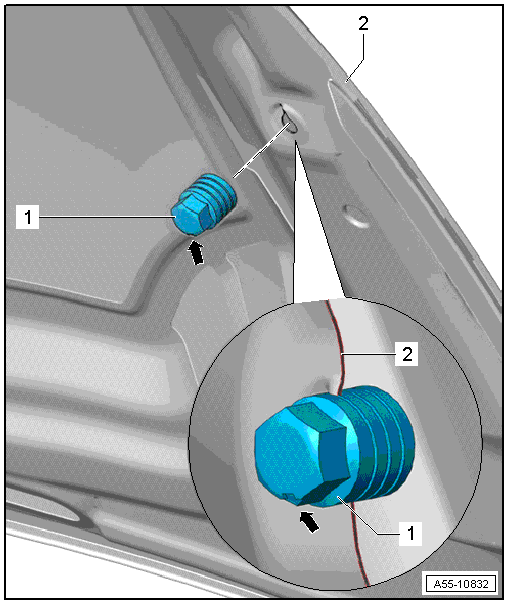

-- Before adjustment of the hood -2- completely install the adjusting buffer -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the adjusting buffer until the closed hood lays with a light pretension on the lock carrier.

-- Check if the hood is without play and in a flush position by pressing or pulling on it.

-- Repeat the adjustment if necessary.
