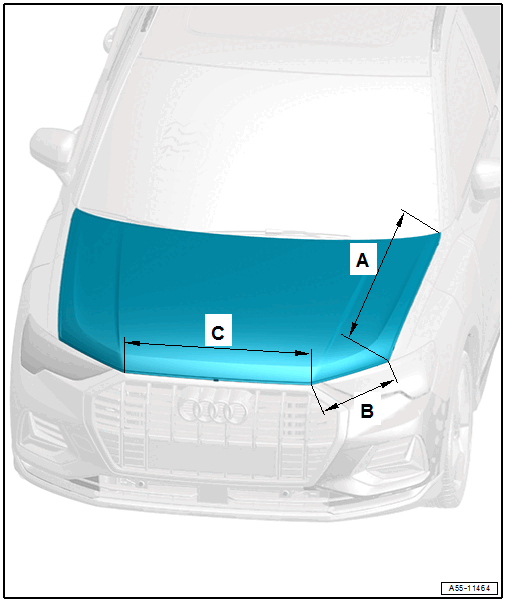

Adjustment Dimensions

TIP:

Gap dimensions apply to the specified areas.

Courtesy of AUDI OF AMERICA, LLC

1. Hood to Fender
   • Gap dimension = 2.9 mm
2. Hood to Headlamp
   • Gap dimension = 5.0 mm
3. Hood to Radiator Grille
   • Gap dimension = 4.1 mm
