Charge Door Unit, Removing And Installing: Removing

-- Remove the wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

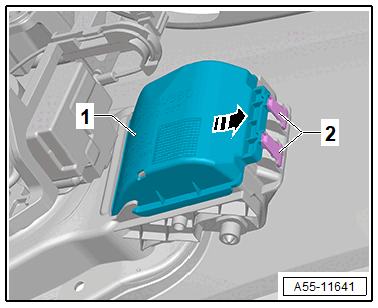

-- Release the retainers -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the cap -1- out of the charge door unit -arrow-.

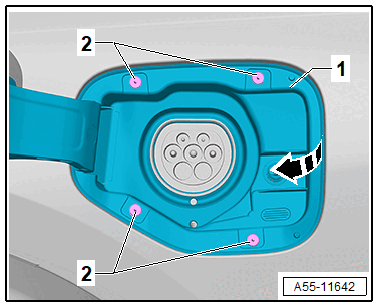

-- Open the charge door unit -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding rivets -2-.

-- Pivot the charge door unit -1- slightly out of the fender -arrow-.

-- Disconnect the connectors.

-- Guide the charge door unit -1- out of the fender.
