Overview - Front Wheel Housing Liner

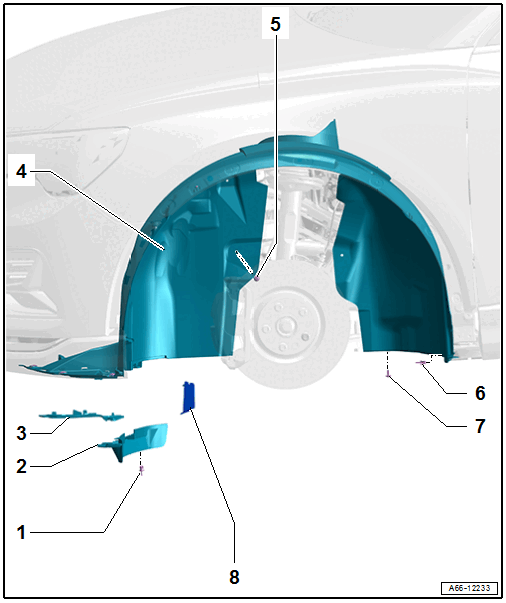

Fig 1: Exploded View Of Front Wheel Housing Liner
GWWA66-12233Courtesy of AUDI OF AMERICA, LLC
  1. Expanding Rivet
    • Quantity: 3
  2. Wheel Spoiler
    • Front
  3. Cover
    • Lower
  4. Wheel Housing Liner
    • Front
  5. Bolt
    • Quantity: 7
    • 1.8 Nm
  6. Expanding Rivet
  7. Bolt
    • 2 Nm
  8. Cover
    • Upper
