Overview - Bumper Carrier, Market-Specific Version

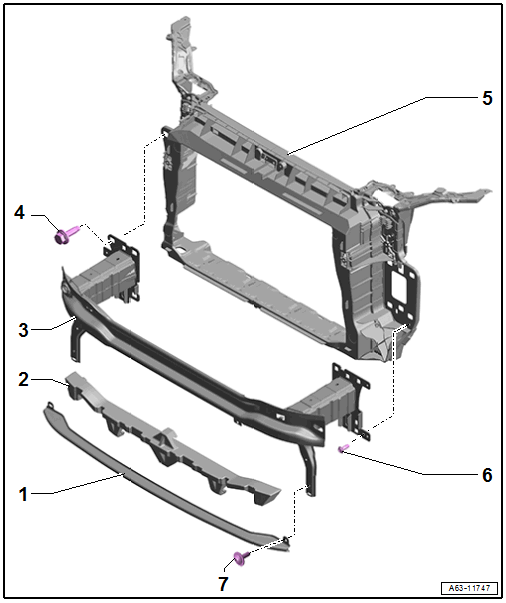

Fig 1: Exploded View Of Impact Member (Market-Specific Version)

Courtesy of AUDI OF AMERICA, LLC

1. Crossmember
2. Molded Foam Part
   • Engaged in the bumper carrier
3. Bumper Carrier
   • Removing and Installing. Refer to BUMPER CARRIER, REMOVING AND INSTALLING .
4. Bolt
   • Quantity: 4
   • 50 Nm
5. Lock Carrier
   • Overview. Refer to OVERVIEW - LOCK CARRIER .
6. Bolt
   • 6 Nm
7. Bolt
   • 10 Nm
