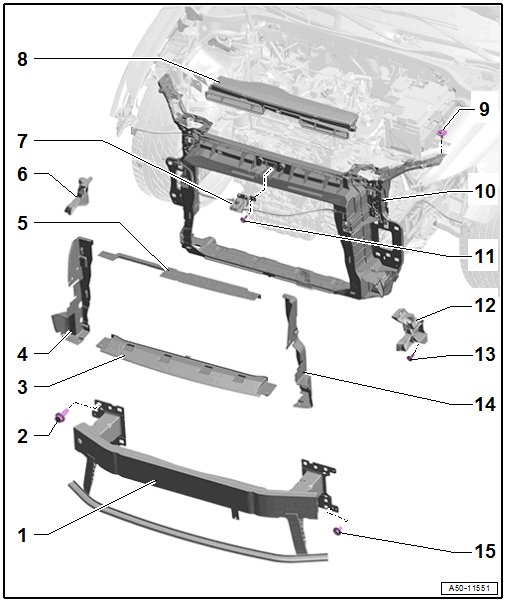

Overview - Lock Carrier
- Bumper Carrier
- Overview. Refer to OVERVIEW - BUMPER CARRIER .
- Bolt
- Quantity: 4
- Tightening Specification. Refer to OVERVIEW - BUMPER CARRIER - List Item: Bolt .
- Air Duct
- Lower
- For the radiator
- Removing and Installing. Refer to RADIATOR AIR DUCT, REMOVING AND INSTALLING .
- Air Duct
- Right
- For the radiator
- Removing and Installing. Refer to RADIATOR AIR DUCT, REMOVING AND INSTALLING .
- Air Duct
- Upper
- For the radiator
- Removing and Installing. Refer to RADIATOR AIR DUCT, REMOVING AND INSTALLING .
- Mount
- Right
- For headlamp
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Mounting Bracket with Release Cable
- For the hook release lever
- Overview. Refer to OVERVIEW - RELEASE CABLE .
- Air Duct
- For the air filter housing
- Bolt
- Quantity: 2
- 10 Nm
- Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Bolt
- Tightening Specification. Refer to OVERVIEW - RELEASE CABLE .
- Mount
- Left
- For headlamp
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Adjusting Screw
- For adjusting the bumper cover with the headlamp to the body contour
- 8 Nm
- Air Duct
- Left
- For the radiator
- Removing and Installing. Refer to RADIATOR AIR DUCT, REMOVING AND INSTALLING .
- Bolt
- Tightening Specification. Refer to -item 4- : Bolt .
