Overview - Plenum Chamber Cover

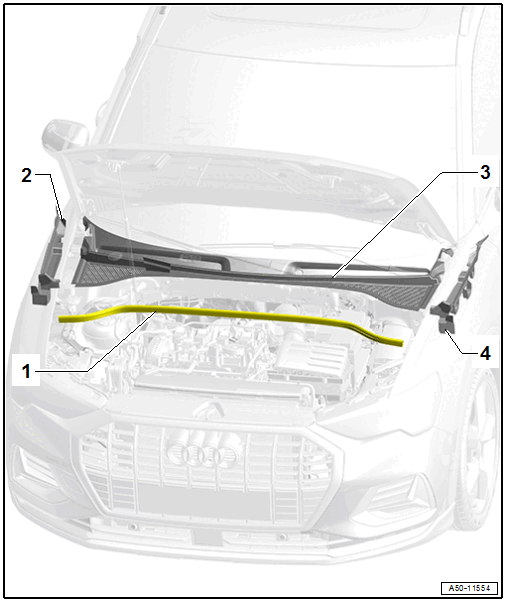

Fig 1: Exploded View Of Plenum Chamber Cover

Courtesy of AUDI OF AMERICA, LLC

Seal
Cover
- For the fender
- Right
- Overview. Refer to OVERVIEW - FENDER .
Plenum Chamber Cover
- Removing and Installing. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
Cover
- For the fender
- Left
- Overview. Refer to OVERVIEW - FENDER .
