Overview - Fender

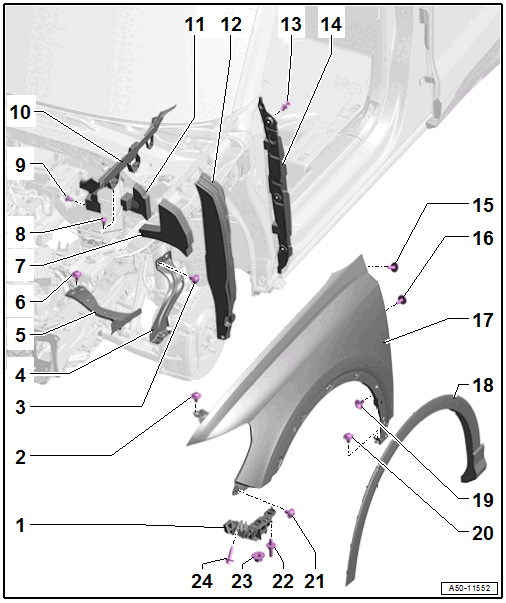

Fig 1: Exploded View Of Fender

Courtesy of AUDI OF AMERICA, LLC

Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 8 Nm
Bolt
- Quantity: 2
- 8 Nm
Fender Bracket
- Removing and Installing. Refer to FENDER BRACKET, REMOVING AND INSTALLING .
Fender Brace
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 8 Nm
Seal
Clip
- Quantity: 2
Clip
Cover
- For the fender
- Removing and Installing. Refer to FENDER COVER, REMOVING AND INSTALLING .
Insulation
Insulation
Expanding Rivet
- Quantity: 3
End Panel
- Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
Bolt
- Self-locking
- Replace after removing
- 8 Nm
Bolt
- 8 Nm
Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
Wheel Cover
- Overview. Refer to OVERVIEW - WHEEL ARCH TRIMS .
Bolt
- Quantity: 2
- 8 Nm
Bolt
- Quantity: 2
- 8 Nm
Bolt
- Quantity: 2
- 8 Nm
Double Bolt
- Quantity: 2
- 8 Nm
Nut
- Quantity: 2
- 4 Nm
Bolt
- 4 Nm
