Washer Fluid Reservoir, Removing And Installing, Right Washer Fluid Reservoir: Removing

-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING, RIGHT WASHER FLUID RESERVOIR .

-- Remove the right front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Place a drip tray under the washer fluid reservoir.

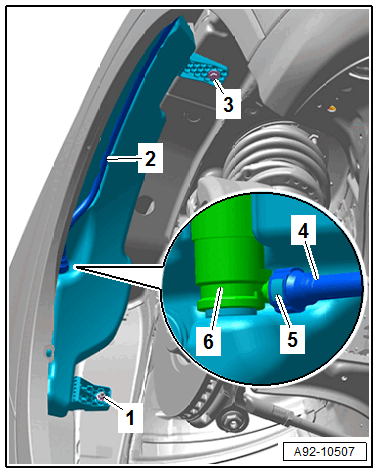

-- Remove the washer fluid hose -4- from the headlamp washer system pump, to do so turn the pump -6- by hand and press the release buttons -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the washer fluid hose -2- for the headlamp washer system.

-- Remove the nut -1- and the bolt -3-.

-- Remove the washer fluid reservoir -5- toward the front until the pumps are accessible.

Courtesy of AUDI OF AMERICA, LLC

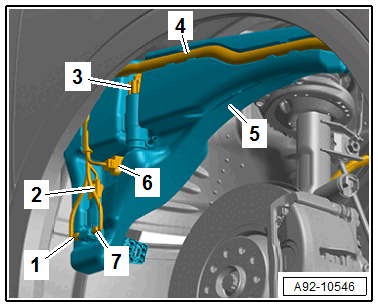

-- Disconnect the connectors -2, 3 and 6-.

-- Free up the wire -4-.

-- Remove the washer fluid hoses -1 and 7- from the pump.

-- Remove the windshield washer fluid reservoir.
