Overview - Impact Member, RS 4, RS 5

WARNING: This page is about a different variant/trim than selected.

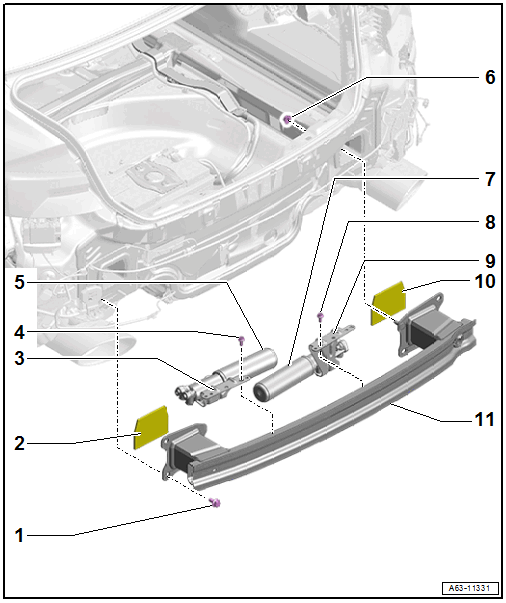

Fig 1: Exploded View Of Impact Absorber, RS4 & RS5

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening specification. Refer to Figure
- Replace after removing.
- Quantity: 6
Foam Seal
- Left
Bracket
- For central valve
- Left
Bolt
- Tightening specification. Refer to OVERVIEW - CENTRAL VALVE .
- Quantity: 3
Central Valve
- Left
- Overview. Refer to OVERVIEW - CENTRAL VALVE .
Nut
- Tightening specification. Refer to Figure
Central Valve
- Right
- Overview. Refer to OVERVIEW - CENTRAL VALVE .
Bolt
- Tightening specification. Refer to OVERVIEW - CENTRAL VALVE .
- Quantity: 3
Bracket
- Right
- For central valve
Foam Seal
- Right
Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, VEHICLES WITHOUT TRAILER HITCH .
