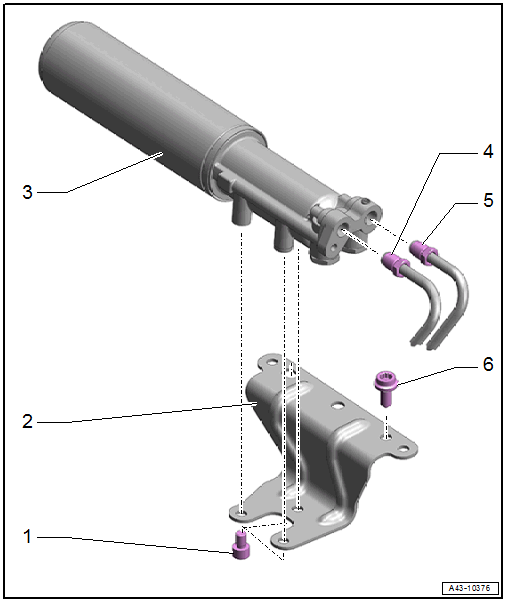

Overview - Central Valve
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 20 Nm
- Bracket
- Central Valve
- Removing and Installing. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
- DRC Line to Rear Shock Absorber
- 14 Nm
- Color code
- Left = green
- Right = blue
- DRC Line to Front Shock Absorber
- 14 Nm
- Color code
- Left = yellow
- Right = white
- Bolt
- 20 Nm
