Overview - Bumper Cover, RS 5 Before Product Improvement

WARNING: This page is about a different variant/trim than selected.

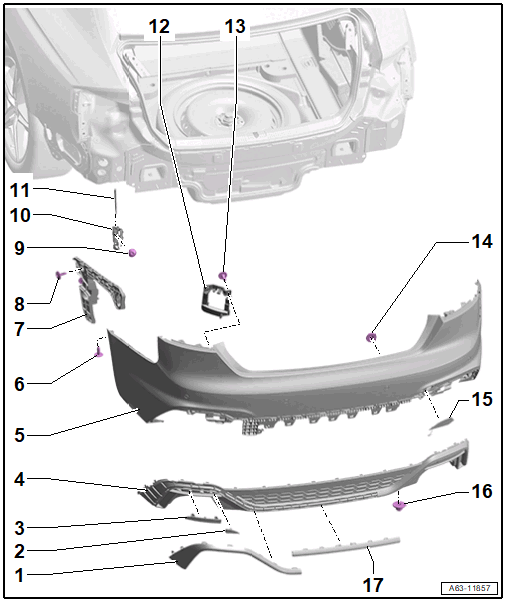

Fig 1: Exploded View Of Rear Bumper Cover (RS 5 Before Product Improvement)

Courtesy of AUDI OF AMERICA, LLC

Side Trim Molding
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS 5 FROM PRODUCT IMPROVEMENT .
Small Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, RS 5 FROM PRODUCT IMPROVEMENT .
Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, RS 5 FROM PRODUCT IMPROVEMENT .
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, RS 5 FROM PRODUCT IMPROVEMENT .
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Mount
- For the bumper cover
- Side
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 3
Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 2
Mount
- For securing the bumper cover
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
Locking Mechanism
- For attaching the rear bumper cover to the upper mount
Mount
- For lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
Bolt
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Quantity: 3
Nut
- 4 Nm
- Quantity: 4
Cover
- For the towing eye
Nut
- 2 Nm
- Quantity: 2
Center Trim Molding
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS 5 FROM PRODUCT IMPROVEMENT .
