Overview - Bumper Cover Mount

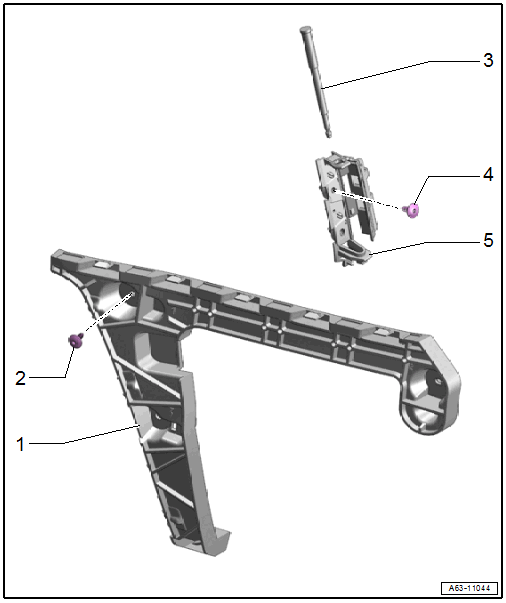

Fig 1: Exploded View Of Bumper Cover Mount

Courtesy of AUDI OF AMERICA, LLC

1. Mount
   • Side
   • For the bumper cover
   • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
2. Bolt
   • Tightening sequence. Refer to Fig 2.
   • Quantity: 3
3. Locking Mechanism
   • For attaching the rear bumper cover to the upper mount
4. Bolt
   • A4 sedan, A5: quantity: 2
   • Wagon, quantity 1
   • Tightening sequence. Refer to Fig 3.
5. Mount
   • Upper
   • For securing the bumper cover
   • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, TOP .

Bumper Cover Side Mount - Tightening Specification and Sequence

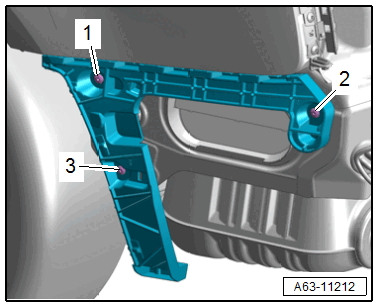

Fig 2: Bumper Cover Side Mount - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

• Tighten the screws -1, 2 and 3- to 3 Nm.

Bumper Cover Upper Mount - Tightening Specification and Sequence

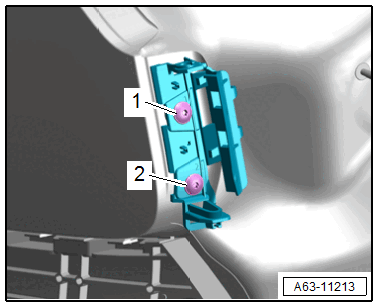

Fig 3: Bumper Cover Upper Mount - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

• A4 sedan, A5: tighten the bolts -1 and 2- to 3 Nm.
• Avant: tighten the bolt to 3 Nm.
