Overview - Bumper Cover, A5 S Line Before Product Improvement

WARNING: This page is about a different variant/trim than selected.

CAUTION:

There is a risk of explosions and fatal injuries due to damaged natural gas tanks.

- The natural gas tank must be checked for damage if components in the rear side or rear area are removed due to damage, such as the bumper cover, rear lid, underbody trim panels, longitudinal members, rear lid end piece, etc.

- Check for damage on fuel tanks. Refer to the appropriate Service Information .

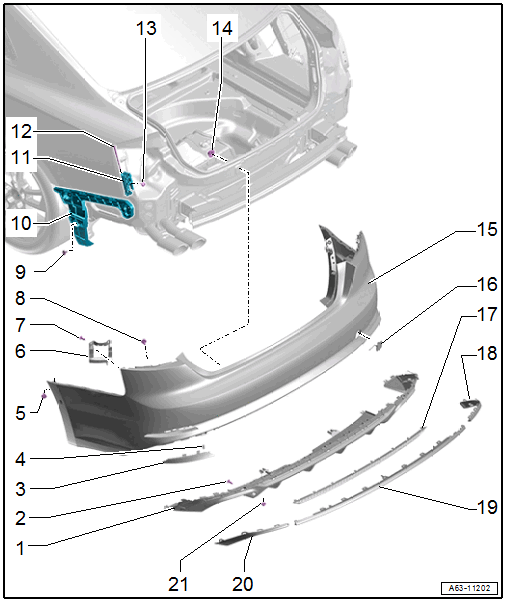

Fig 1: Exploded View Of Rear Bumper Cover, A5 S Line, S5

Courtesy of AUDI OF AMERICA, LLC

Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 AND A5 BEFORE PRODUCT IMPROVEMENT .
Spring
- For rear reflector
Bolt
- 2 Nm
Mount
- For lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
Bolt
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Quantity: 3
Bolt
- 2 Nm
Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 3
Mount
- For the bumper cover
- Side
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
Mount
- For securing the bumper cover
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
Locking Mechanism
- For attaching the rear bumper cover to the upper mount
Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 2
Nut
- 4 Nm
- Quantity: 4
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Cover
- For the towing eye
Trim
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, A5 S LINE, S5 BEFORE PRODUCT IMPROVEMENT .
Right Trim Molding
- Equipped on some models
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, S5 BEFORE PRODUCT IMPROVEMENT .
Center Trim Molding
- Equipped on some models
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, S5 BEFORE PRODUCT IMPROVEMENT .
Left Trim Molding
- Equipped on some models
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, S5 BEFORE PRODUCT IMPROVEMENT .
Nut
- 2 Nm
- Quantity: 2
