Overview - Bumper Cover, A4 From Product Improvement

WARNING: This page is about a different variant/trim than selected.

CAUTION:

There is a risk of explosions and fatal injuries due to damaged natural gas tanks.

- The natural gas tank must be checked for damage if components in the rear side or rear area are removed due to damage, such as the bumper cover, rear lid, underbody trim panels, longitudinal members, rear lid end piece, etc.

- Check for damage on fuel tanks. Refer to the appropriate Service Information .

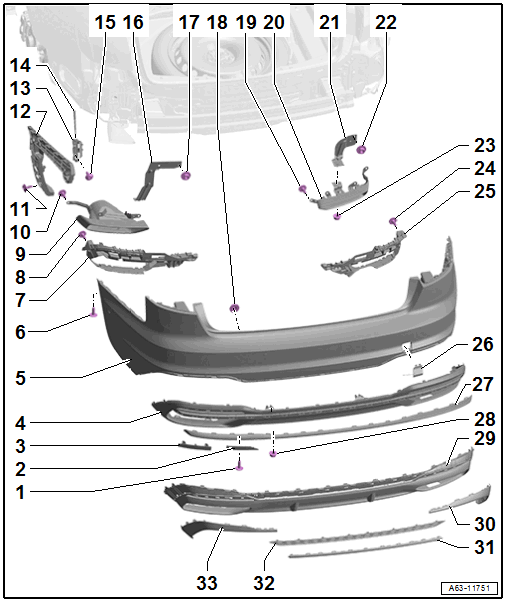

Fig 1: Exploded View Of Rear Bumper Cover (A4 From Product Improvement)

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2 Nm
Small Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .
Large Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .
Bumper Cover Lower Section
- "Basic" and "lines" equipment version
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT FROM MY 2019, A5 FROM PRODUCT IMPROVEMENT .
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Mount
- For tail pipe trim
- Removing and Installing. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .
Bolt
- 2 Nm
- Quantity: 4
Tail Pipe Trim
- Removing and Installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .
Bolt
- 2 Nm
- Quantity: 3
Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 3
Mount
- For the bumper cover
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Side
Mount
- For securing the bumper cover
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
Locking Mechanism
- For attaching the rear bumper cover to the upper mount
Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
Mount
- Left
- For the bumper cover
- Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Nut
- 3.5 Nm
- Quantity: 2
Nut
- 4 Nm
- Quantity: 4
Bolt
- 2 Nm
- Quantity: 3
Tail Pipe Trim
- TDI engine: closed version
- Removing and Installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .
Mount
- Right
- For the bumper cover
- Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Nut
- 3.5 Nm
- Quantity: 2
Nut
- 3.5 Nm
- Only on TDI engine
Bolt
- 2 Nm
- Quantity: 4
Mount
- For tail pipe trim
- Removing and Installing. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .
Cover
- For the towing eye
Trim Molding
- "Lines" equipment version
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A4 LINES, A5 LINES AND A4 ALLROAD FROM PRODUCT IMPROVEMENT .
Nut
- 3.5 Nm
- Quantity: 2
Bumper Cover Lower Section
- "S-line" Equipment Versions
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT FROM MY 2019, A5 FROM PRODUCT IMPROVEMENT .
Right Trim Molding
- "S-line" Equipment Versions
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A4 S LINE FROM PRODUCT IMPROVEMENT, RS 4 ALL, RS 5 BEFORE PRODUCT IMPROVEMENT .
Center Trim Molding
- "S-line" Equipment Versions
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A4 S LINE FROM PRODUCT IMPROVEMENT, RS 4 ALL, RS 5 BEFORE PRODUCT IMPROVEMENT .
Trim
- "S-line" Equipment Versions
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, A4 S LINE FROM PRODUCT IMPROVEMENT .
Left Trim Molding
- "S-line" Equipment Versions
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A4 S LINE FROM PRODUCT IMPROVEMENT, RS 4 ALL, RS 5 BEFORE PRODUCT IMPROVEMENT .
