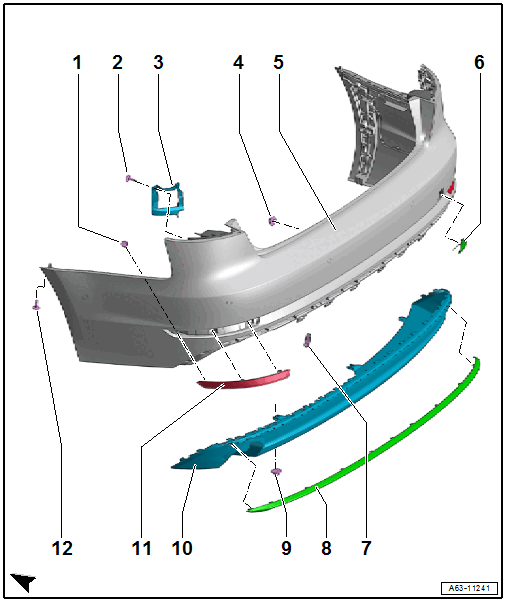

Overview - Bumper Cover, A4 Before Product Improvement Through My 2018
WARNING: This page is about a different variant/trim than selected.
CAUTION:
There is a risk of explosions and fatal injuries due to damaged natural gas tanks.
- The natural gas tank must be checked for damage if components in the rear side or rear area are removed due to damage, such as the bumper cover, rear lid, underbody trim panels, longitudinal members, rear lid end piece, etc.
- Check for damage on fuel tanks. Refer to the appropriate Service Information .
- Bolt
- 2 Nm
- Bolt
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Quantity: 3
- Mount
- For lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Nut
- 4 Nm
- Quantity: 4
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Overview - Bumper Cover Mount. Refer to OVERVIEW - BUMPER COVER MOUNT
- Cover
- For the towing eye
- Spring
- For rear reflector
- Trim Molding
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT THROUGH MY 2018 .
- Nut
- 2 Nm
- Quantity: 2
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 AND A5 BEFORE PRODUCT IMPROVEMENT .
- Bolt
- 2 Nm
